Eye Bolts
We are Authorised Dealer, Distributor, Supplier of Eye Bolts and our set up is situated in Aurangabad, Maharashtra, India.

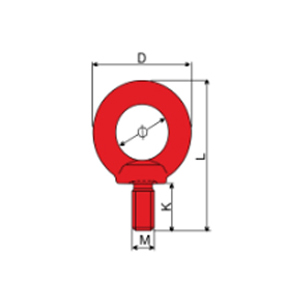

| Weight/kg | WLL 700 | WLL 900 | D | L | |
| 0.049 | 0.4 | 0.15 | 36 | 20 | 36 |
| 0.05 | 1 | 0.4 | 36 | 20 | 36 |
| 0.09 | 1 | 0.4 | 36 | 20 | 36 |
| 0.16 | 2 | 0.75 | 54 | 30 | 53 |
| 0.24 | 4 | 1.5 | 63 | 35 | 62 |
| 0.36 | 6 | 2.3 | 72 | 40 | 71 |
| 0.72 | 8 | 3.2 | 90 | 50 | 90 |
| 1.32 | 12 | 4.5 | 108 | 60 | 109 |
| 2.08 | 16 | 7 | 126 | 70 | 128 |
| 3.11 | 24 | 9 | 144 | 80 | 147 |
| 5.02 | 32 | 12 | 166 | 90 | 168 |

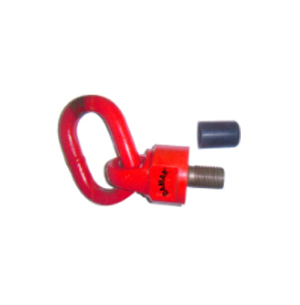

| Weight (kg) | WLL (T) (4:1) | D*E | B | C | G | T | A | W | N | H | S | |
| WLL 90 0 | WLL 0 0 | |||||||||||
| 0.41 | 0.3 | 0.6 | M8 X 13 | 36 | 16.05 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| 0.43 | 0.5 | 0.9 | M10 X 18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| 0.44 | 0.5 | 1.0 | M12 X 18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| 0.96 | 2 | 4 | M20 X 30 | 4.95 | 19 | 68 | 56 | 70 | 35 | 16 | 3.5 | 1 |
| 1.45 | 3.15 | 6.3 | M24 X 40 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1 |
| 2.17 | 5.3 | 10.6 | M30 X 35 | 66 | 23.5 | 96.5 | 65.5 | 85 | 40 | 20 | 4 | 1.5 |
| 4.17 | 8 | 11.8 | M6 X 90 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
| 3.62 | 10 | 15 | M42 X 50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| 4.02 | 10 | 15 | M48 X 50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| 11.6 | 15 | 25 | M56 X 84 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
| 12.4 | 15 | 25 | M64 X 95 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
