Wire Rope Hoists

Specification

• Heavy duty robust design : Smooth operation even in thoughest of application.
• Truly modular design : Easily accessible separate brake, motor, drum, gear box & panel unit
• LH / RH (4/2 Falls) grooves on drum : Gives true vertical lifts
• Motor and brake assembly parallel to drum : Shorter length and better hook approach
• Brake Shoe/disc, rotary limit switch, built in control panel : Truly customized design
• Precision machine cut case hardened alloy steel gears : Long life noise less operation
• Seamless pipe accurately machined rope drum : Long life

Advantages

• Planetary gear box : Giving smooth & low noise operation
• Gearbox inside the drum : Compact design
• Geared couplings : Better transmission
• Overload sensor : Safety ensured
• Ring type rope guide : Rugged design
• Optional rotary lirnit switch : Limits hoisting motion positively
• Brake motor : Long life multispeed options
• Seamless tube drums ; Long life engineered product

Advantages

• LH / RH (4/2 Falls) grooves on drum : Gives true vertical lifts
• Grade 80 load chain : Higher safety factor & longer chain life
• Fail safe disc/ shoe brake : Trouble free operation and ease of adjustment
• Precision machine cut case hardened alloy steel gears : Long life noise less operation
• Geared couplings : Better transmission
• Compact design : Best suited for crane & higher lift application
• Truly modular design : Easily accessible separate brake, motor, drum, gear box & panel unit
• Manufactured in ISO 9001:2008 certified company Assured quality and inter changeability of parts

Advantages

• Heavy duty class IV robust design : Smooth operation even in toughest of application.
• Manufactured in ISO 9001:2000 certified company : Assured quality and interchangeability of parts.
• Truly modular constructor : Easily accessible separate brake, motor, drum, gear box & panel unit.
• Seamless pipe accurately machined rope drum : Long life
• Unique and sturdy rope guide arrangement : Prevents rope slackening and easy change of rope
• Precision machine cut case-hardened alloy steel gears : Noiseless operation longlife
• Fail safe disc brake : Trouble free operation and ease of adjustment
• Built in control panel with std. electricals : Ready to use.

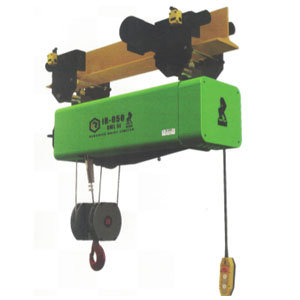

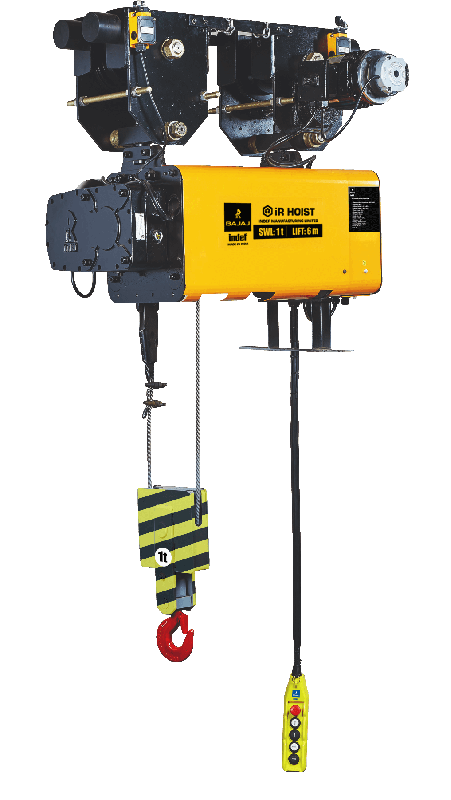

Why Indef iR Hoist?

World Class Hoist : Optimized design complying with international FEM Norms
• lndef iR hoists have been designed in conformity with FEM classification 2m
• The gearbox service lif e is rated for more than 2000 hours at full load.

Compact Modular Design
• The lndef iR rope hoist provides better side approaches enabling better utilization of the shed space
• With a modular design, maintenance is simplified enabling quick maintenance to enable high uptime of the hoist

High Performance Gearbox
• Compact, low maintenance, low noise, multistage, lube immersed gearbox directly coupled to rope drum for high efficiency
• Hardened and ground gears for long life, low noise, highly durable gearing.

Economical In Operation
• Light weight, robust die-cast aluminium alloy gearbox body for lower deadweight
• Directly coupled three stage shaft mounted drive directly connected to rope drum

Efficient Motor
• Efficiently designed, green technology IP 55 enclosure based, optimised motor design for low noise and low vibration operation
• Provision for thermocouple and encoder adaptation if demanded by applicati on

Flexible Design
• Design adaptable to meet customer specific requirements for components (motors, VFD, brake, wire-rope etc.)
• Optional of dual speed upgrade kit.

Fast Acting Brake
• Fast action electromagnetic disc brakes for enhanced safety
• Factor of safety of 1.5

Single Speed/ Dual Speed Options
• Single speed standard
• Dual Speed with frequency inverter on request allowing frequency range from 10 % minimum to 100%
