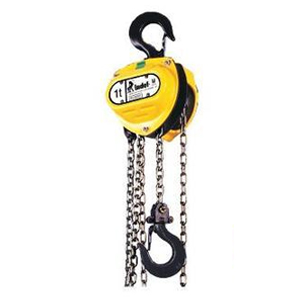

Triple Spur Gear Chain Pulley Block Model M
Advantages
- Light weight & Sturdy : Ease of handling
- Lifelong Lubrication : Minimal maintenance required
- Surface Hardened Gears : Extended working life
- Use of Needle Roller Bearings : High operating efficiency
- Smooth Passage of Load Chain : Machined guide rollers
- Smooth hand chain operation : Unique cover design
- Self sustaining maintenance free friction brake : Reduced downtime
- Grade 80 load chain for strength & wear resistance : Longer chain life
- Anti corrosive powder coated finish : Better aesthetics
Specification / Dimension (mm)
| Capacity | MT | 0.5 | 1 | 2 | 2.5 | 3 | 5 | 8 | 10 |
| Number of falls of load chain | No. | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 4 |
| Dimensions | |||||||||
| A Hook Suspension | mm | 335 | 400 | 461 | 530 | 575 | 805 | 880 | 950 |
| With trolley, ranges 1 &2 | mm | 365 | 430 | 500 | 560 | 705 | 890 | 980 | 950 |
| With Trolley ranges 3 | mm | 405 | 470 | 540 | 605 | 720 | |||
| B | mm | 155 | 180 | 180 | 238 | 230 | 280 | 430 | 480 |
| C | mm | 144 | 153 | 153 | 209 | 182 | 209 | 220 | 220 |
| H Hook admittance | mm | 27 | 32 | 32 | 42 | 42 | 51 | 75 | 75 |
| Weight at 3 M | kg | 10 | 13 | 19 | 29 | 27 | 59 | 94 | 130 |
| Extra weight per additional M lift | kg | 1.4 | 1.8 | 2.6 | 3.0 | 3.0 | 5.7 | 7.9 | 10.1 |
| Running pull on hand chain | kg | 28 | 30 | 33 | 37 | 36 | 41 | 46 | 43 |

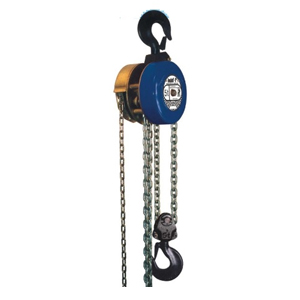

Triple Spur Gear Chain Pulley Block Model P
Advantages
- Manufactured in 150 9001 : 2008 certified company : Assured quality
- Tested as per ISI procedure for 50% over load : Assured safety
- Grade 80 load chain & zinc plated hand chain : Longer chain life
- Rugged German design, in use for more than 30 years : Assured reliability
- Double ball bearing supported load wheel : Smooth operation
- Precision machine case hardened alloy steel gears : Long life, noiseless operation
- Fully pocketed S.G. iron cast load chain wheel : Long life, safe and smooth running
- Anti corrosive powder coated finish : Anti rust & Better aesthetics
Specification / Dimension (mm)
| Capacity | MT | 0.5 | 1 | 2 | 3 | 5 | 7.5 | 10 |
| No. of falls | 1 | 1 | 2 | 2 | 2 | 3 | 4 | |
| Running pull on hand chain | Kgs. | 13 | 26 | 28 | 43 | 49 | 50 | 61 |
| Weight at 3 meter lift (approx.) | Kgs. | 21 | 21 | 30 | 35 | 60 | 88 | 126 |
| Extra weight per additional metre lift (approx) | Kgs. | 2.9 | 2.9 | 4.3 | 4.3 | 5.2 | 7.0 | 14.4 |
